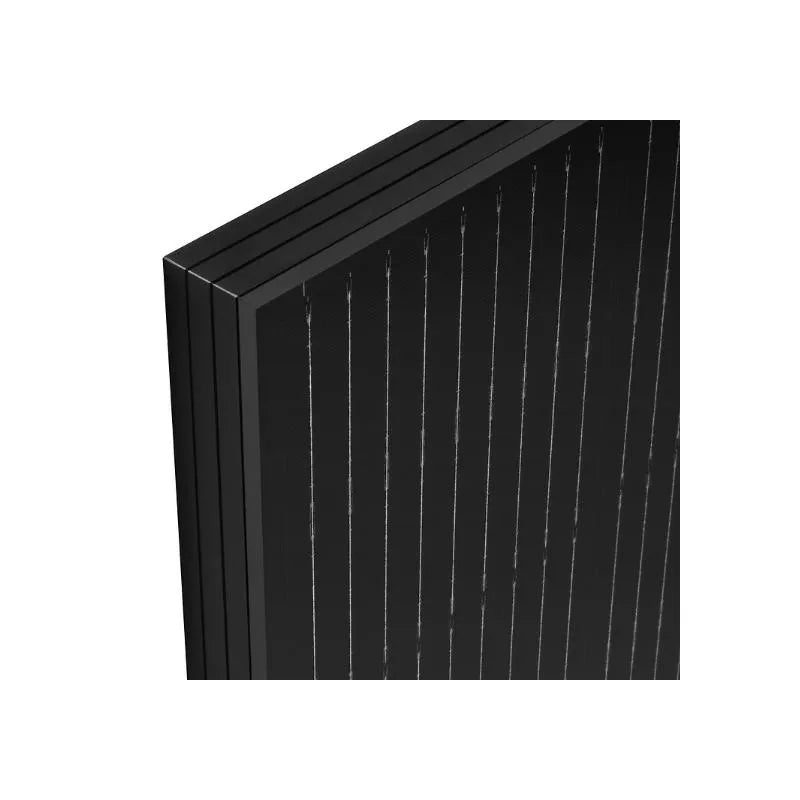

Spartan Power 100 Watt 9BB Black Mono Solar Panels

Don’t forget your Mounts, Solar Connectors, and a Charge Controller!

Perfect for RV’s, vans, boats and other mobile applications, these 9 bus bar black mono solar panels not only look great but are super efficient! We have a variety of T & Y branch connectors and mounts to choose from as these 100 Watt solar panels are compatible with Z brackets, non drill, ground, pole and tilt mounts.

Spartan Power 100 Watt 9BB Black Mono Solar Panels Features:

• 9 bus bar solar cell configuration
• Lightweight anodized aluminum frame
• High transmission, AR (anti- reflective) coated tempered glass
• Plug and play junction box
• Industry standard quick connect cables (MC4) work in series or in parallel
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF and many more), PID resistant, 100% El double inspection)
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35mm hail stones at 97km/h)
• Excellent low light performance on cloudy days, mornings and evenings

Spartan Power 100 Watt 9BB Black Mono Solar Panels Specifications:

ELECTRICAL DATA (STC):

• Rated Power in Watts-Pmax (Wp): 100
• Open Circuit Voltage- Voc (V): 22.11
• Short Circuit Current- Isc (A): 5.91
• Maximum Power Voltage- Vmpp(V): 18.81
• Maximum Power Current- Impp (A): 5.32
• Power Tolerance: 0~+3%
• STC: Irradiance 1000 W/m^2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3

MECHANICAL DATA:

• Solar Cells: Mono-crystalline
• Cell Configuration: 33cells (3*11)
• Module Dimensions: 38.7 x 21.25 x 1.29″
• Weight: 16.5 lbs
• Superstrate: 3.2mm, High Transmission, Low Iron, Tempered Glass
• Substrate: White Back Sheet
• Frame: Anodized Aluminum Alloy type 6063Tf, Silver Color
• J-box: IP67
• Cables: 90cm 4mm2 cable with MC4

TEMPERATURE & Maximum RATINGS:

• Nominal Module Operating Temperature (NMOT): 45±2P
• Temperature Coefficient of Voc: -0.29%/P
• Temperature Coefficient of Isc: 0.05%/P
• Temperature Coefficient of Pmax: -0.39%/r
• Operational Temperature: -40%.+85P
• Maximum System Voltage: 1000VDC
• Max Series Fuse Rating: 20A
• Limiting Reverse Current: 20A
