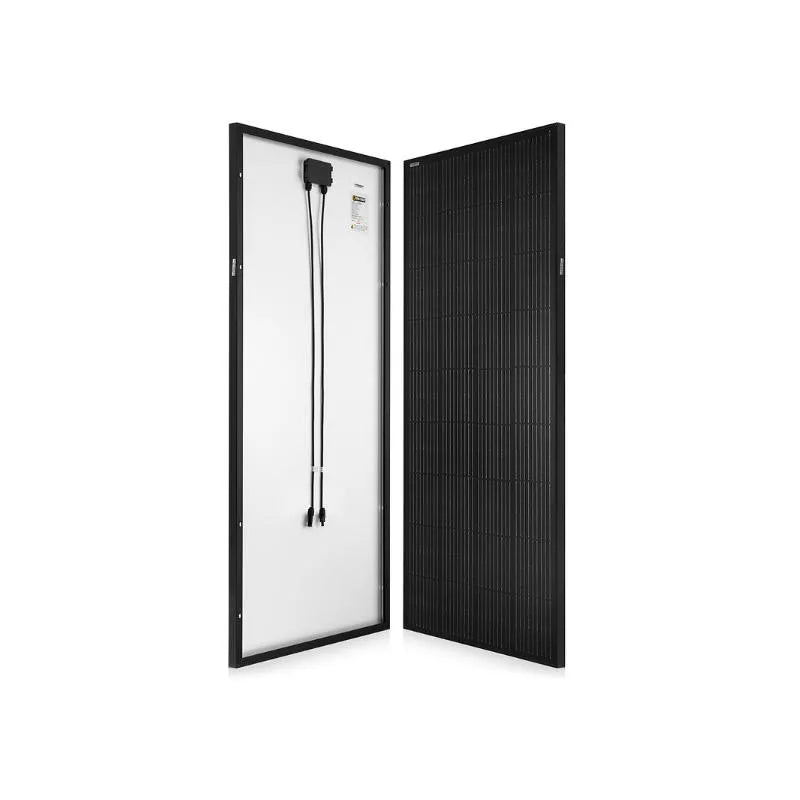

Spartan Power 200 Watt 9BB Black Mono Solar Panels

Spartan Power 200 Watt solar panels are perfect for RV’s, vans, boats and other mobile applications. These 9 busbar black mono solar panels not only look great but are super efficient! We have a variety of mounts to choose from as these are compatible with Z brackets, ground, pole and tilt mounts. Ask a sales rep for help if you can’t find what you need!

200 Watt Solar Panel Features:

• 9 busbar solar cell configuration

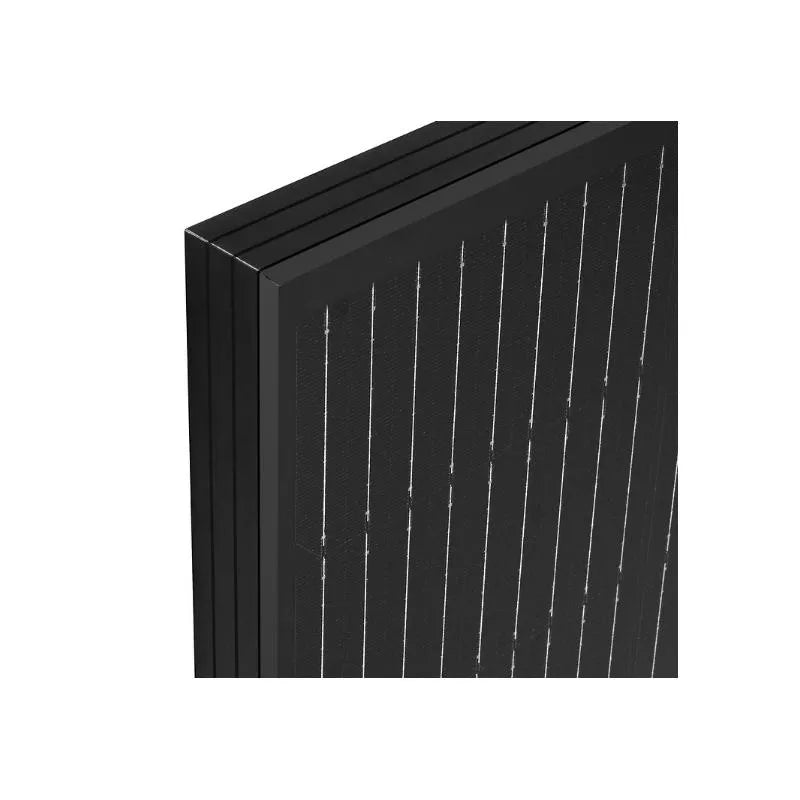

• Lightweight anodized aluminum frame
• High transmission, AR (anti- reflective) coated tempered glass

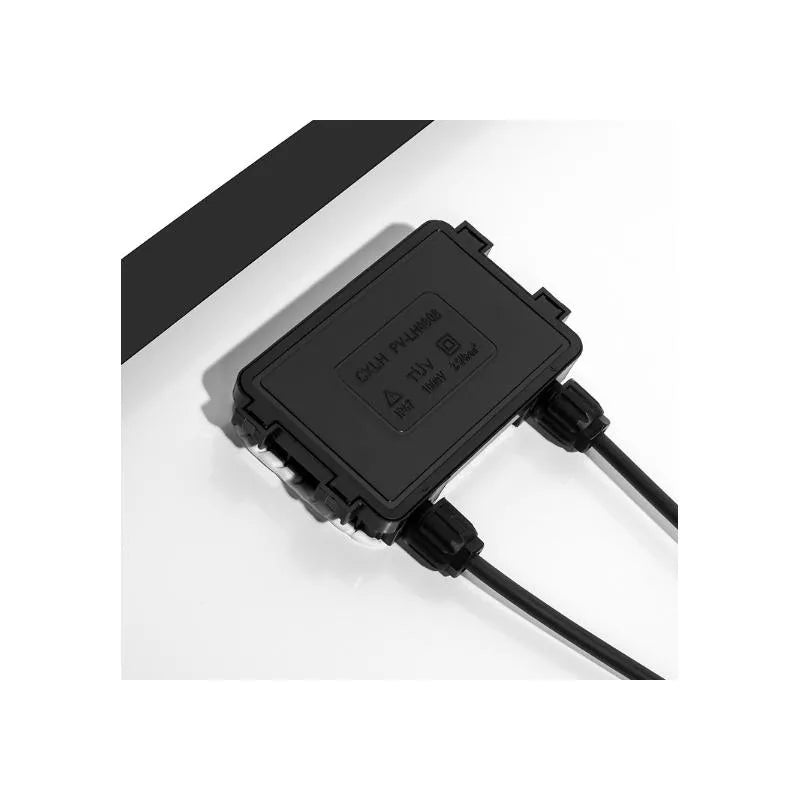

• Plug and play junction box
• Industry standard quick connect cables (MC4) work in series or in parallel
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF and many more), PID resistant, 100% El double inspection)
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35mm hail stones at 97km/h)
• Excellent low light performance on cloudy days, mornings and evenings

200 Watt Solar Panel Specifications:

• Maximum Power (Pmax): 200W
• Voltage at Pmax (Vmp): 20.5V
• Current at Pmax (Imp): 9.76A
• Open-Circuit Voltage (Voc): 24.1V
• Short-Circuit Current (Isc): 10.85A
• Temperature Coefficient of Voc: -(80±10)mV/°C
• Temperature Coefficient of ISC: (0.065±0.075)%/°C
• Temperature Coefficient of Power: -(0.5±0.05)%/°C
• NOCT (Air 20°C; Sun 0.8KW/m^2winf 1m/s): 47±2°C
• Operating Temperature: -40°C to 85°C
• Maximum system Voltage: 1000V DC
• Power Tolerance: ±3%
• Cells: Monocrystalline Solar Cell
• No. of Cells and Connections: 36(4×9)
• Module Dimension: 1480*680*30 MM (58.27*26.77*1.18 IN)
• Weight: 22.11 lbs
• Packing Information (Carton): 1496mm x 686mm x 73mm (2PCS/CTN) 58.9in x 27in x 2.9in
