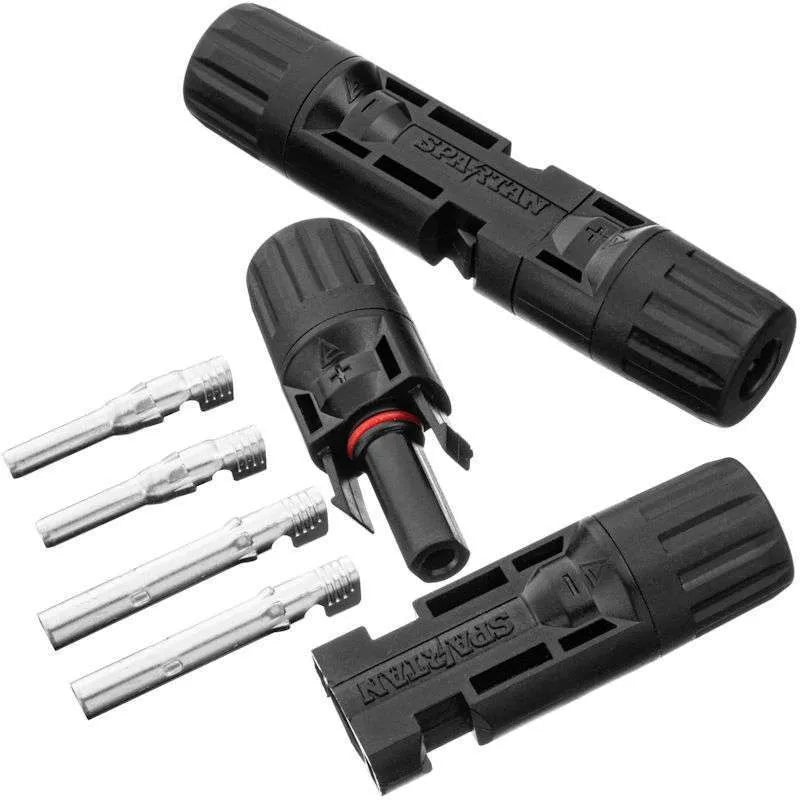

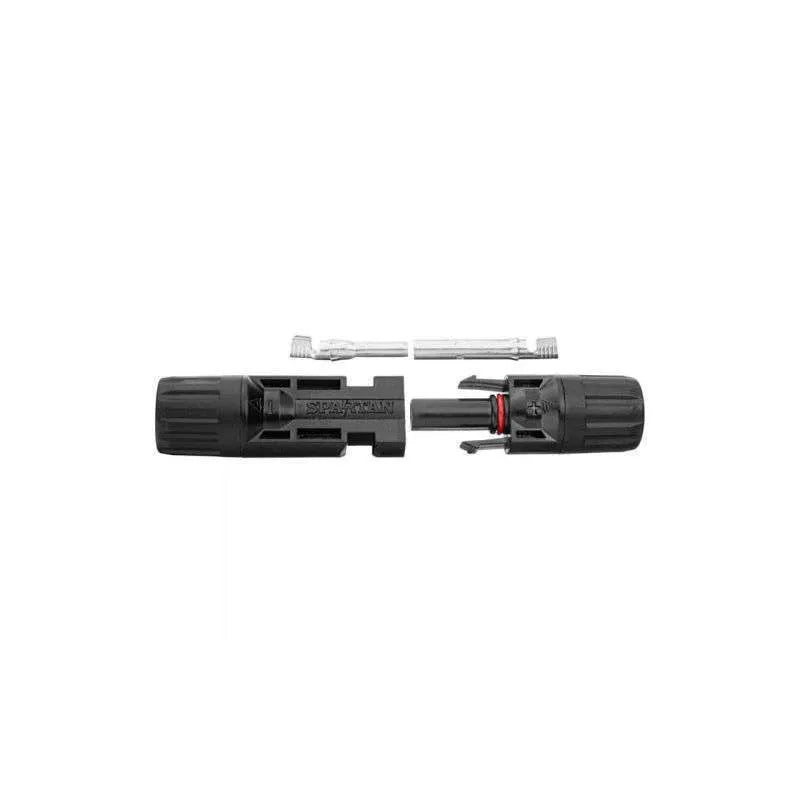

Spartan Power MC4 Solar Connectors Male & Female

Spartan Power solar connectors are specifically designed for use within photovoltaic (PV) solar systems. Like all Spartan Power products, our solar connectors are made with highest quality materials making them both heavier and sturdier than many other brands. Our MC4 equivalent solar connectors come with a two year warranty which is one year longer than many of our competitors. These connectors are IP67 waterproof and resist dirt/dust build up.

We recommend purchasing a MC4 equivalent disconnect tool kit for tightening our solar connectors. Disconnect tools are not necessary, but it will make assembly a lot easier and does not risk damaging the connector like pliers do. These connectors require a MC4 crimping tool in order to meet UL standards and pass inspection.

Wholesale pricing is available for solar installers and dealers, please contact a Spartan Power sales rep today.

Spartan Power Solar Connector Features & Specifications:
MC4 equivalent solar panel cable connectors, male & female (MF)
Rated Current: 30A
Maximum Voltage: 1000VDC
Wiring Size Range: 10 AWG – 14 AWG
Contact Material: Silver Plated Copper
Insulation Material: PC
Protection Class: IP67
Warranty: Two Years
