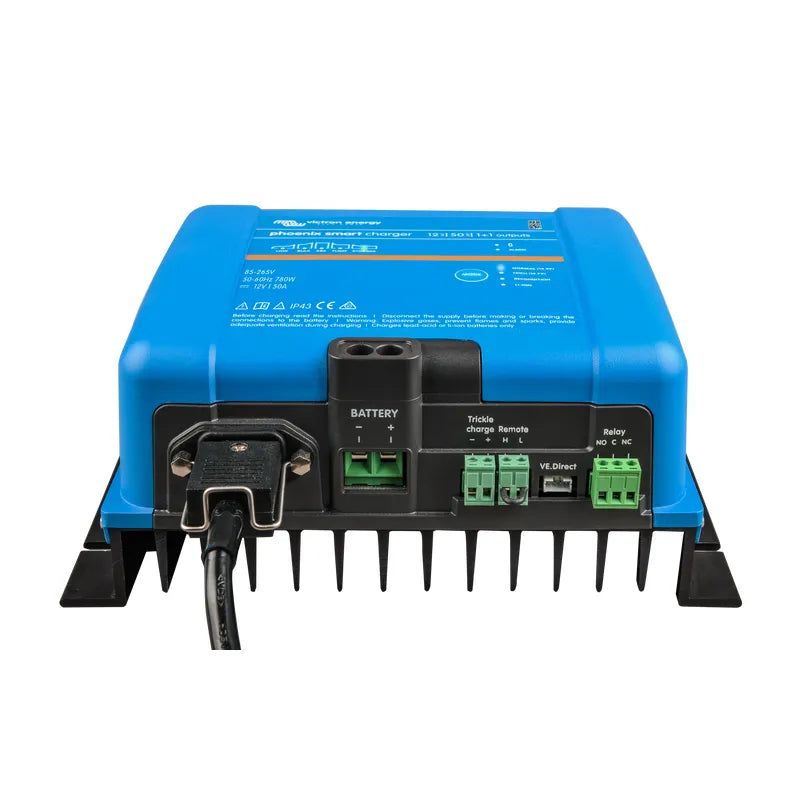

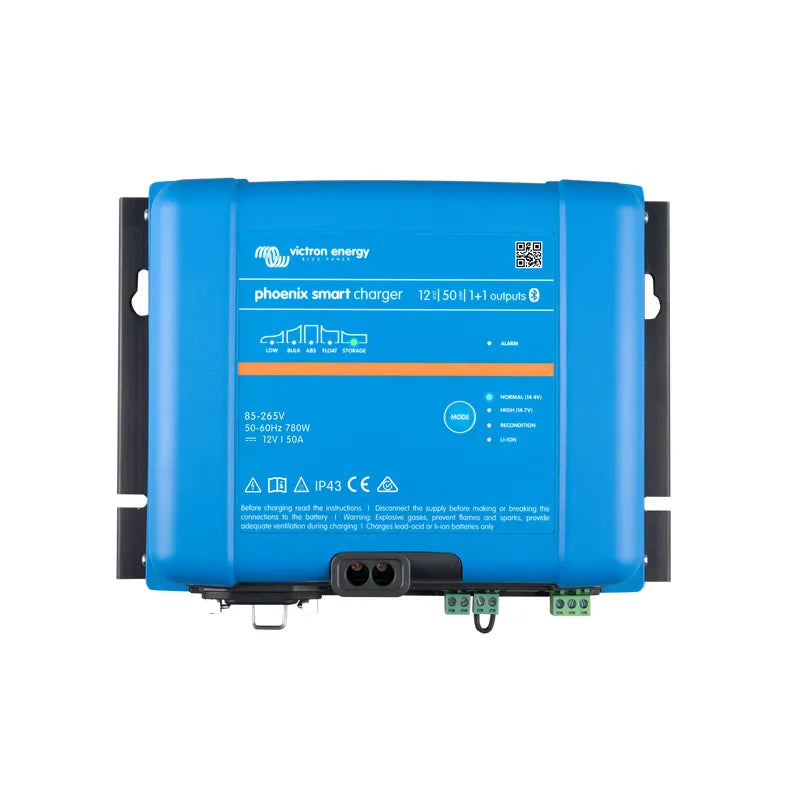

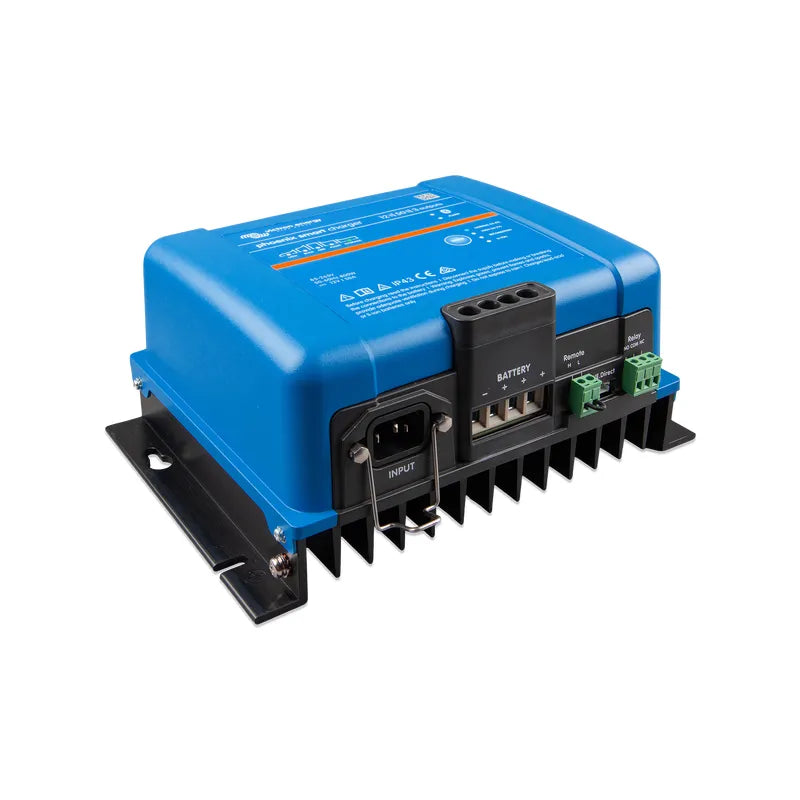

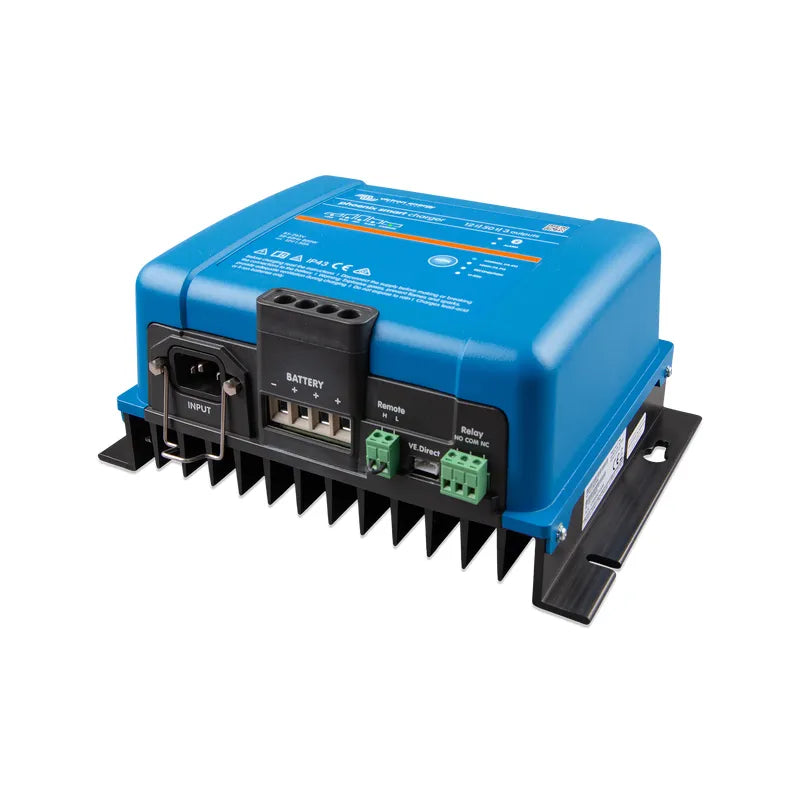

Victron Energy IP43 120-240V Phoenix Smart Charger

Mains cable is NOT INCLUDED. Please order Victron part# ADA010100400

120-240V Charger : With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronize Phoenix Smart IP43 Chargers.

Adaptive 6-stage charge algorithm: bulk– absorption – recondition – float – storage – refresh
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be
preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charge process
relative to the way the battery is being used.

Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from
a Li-ion BMS to the remote on-off port.
Alternatively full control of voltage and current can be achieved with Bluetooth.

Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
Three preprogrammed algorithms can be selected with the mode button.

Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
Alternatively, terminal H can be pulled high, or terminal L can be pulled low.
See manual for details.

VE.Direct interface
For a wired data connection to a Color Control panel, PC or other devices.
Please see the VictronConnect app under Downloads / Software on our website.

Synchronized charging
Pairing two or more Phoenix Smart IP43 Chargers in a VE.Smart Network, enables synchronized charging.
This improves the charge efficiency and battery life.

Victron IP43 120-240V Battery Chargers:

• 12V 30A (1+1) Output – PSC123051095
• 12V 30A (3) Output – PSC123053095
• 12V 50A (1+1) Output – PSC125051095
• 12V 50A (3) Output – PSC125053095
• 24V 16A (1+1) Output – PSC241651095
• 24V 25A(1+1) Output – PSC242551095
• 24V 25A (3) Output – PSC242553095
