VRLA AGM: design life 7-10 years
A truly innovative battery
The AGM Super Cycle batteries are the result of recent battery electrochemistry developments.
The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new
additives to the electrolyte reduce sulfation in case of deep discharge.
Exceptional 100% depth of discharge (DoD) performance
Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.
The tests consist of a daily discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition,
and then a recharge with I = 0,2C₂₀. The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.
We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60-80% DoD is expected
Smaller and lighter
An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
The Victron Energy Super Cycle AGM batteries range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
Victron Energy Super Cycle AGM Batteries:

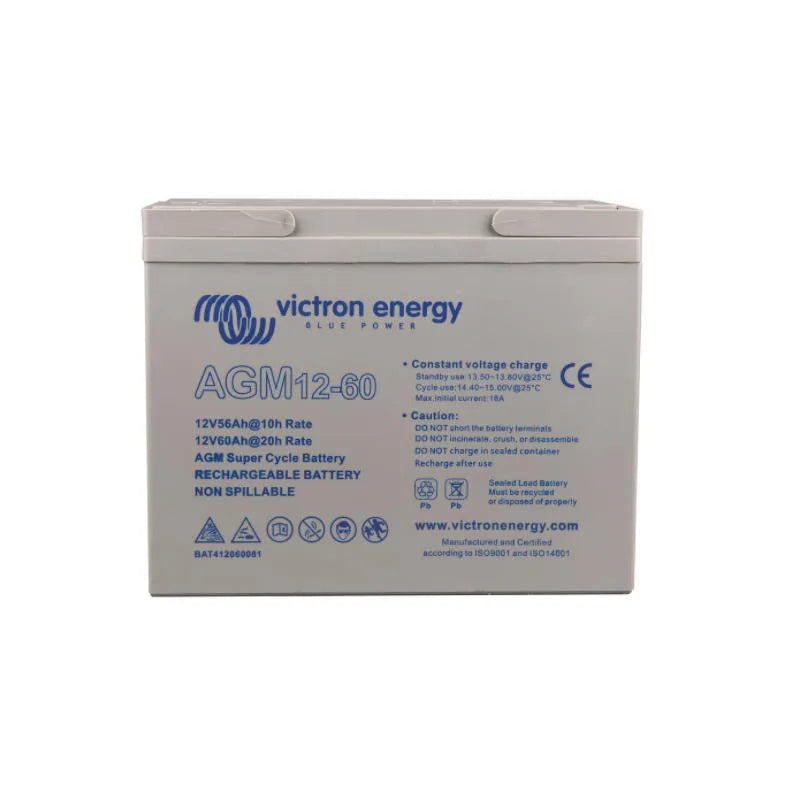

BAT412060081: 12V/60Ah AGM Super Cycle Battery (8.81 x 5.31 x 7.00 inches) 30.86LBS

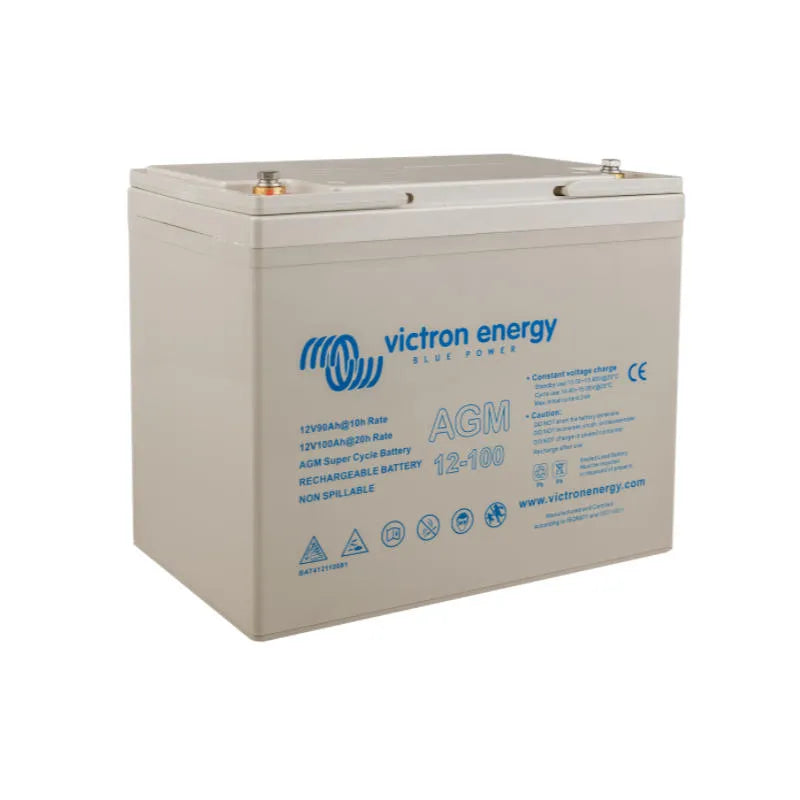

BAT412110081: 12V/100Ah AGM Super Cycle Battery (10.23 x 6.61 x 8.46 inches) 57.3 LBS

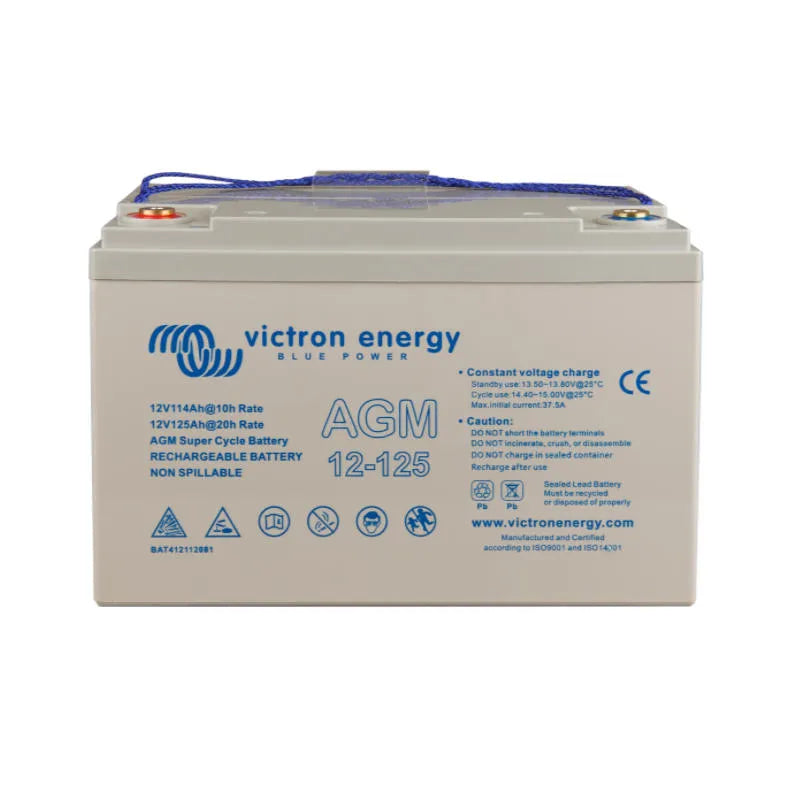

BAT412112081: 12V/125Ah AGM Super Cycle Battery (12.99 x 6.73 x 8.42 inches) 72.75 LBS

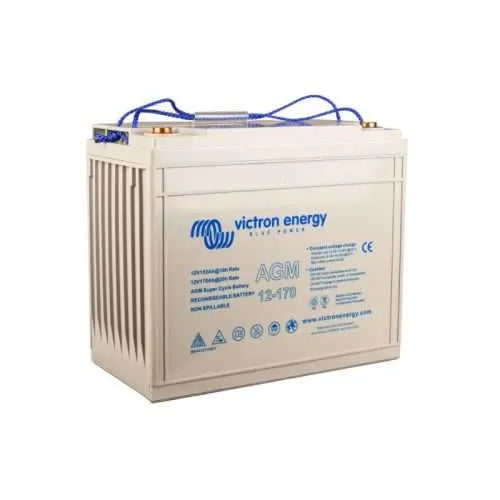

BAT412117081: 12V/170Ah AGM Super Cycle Battery (13.22 x 6.77 x 11.02 inches) 99.20 LBS

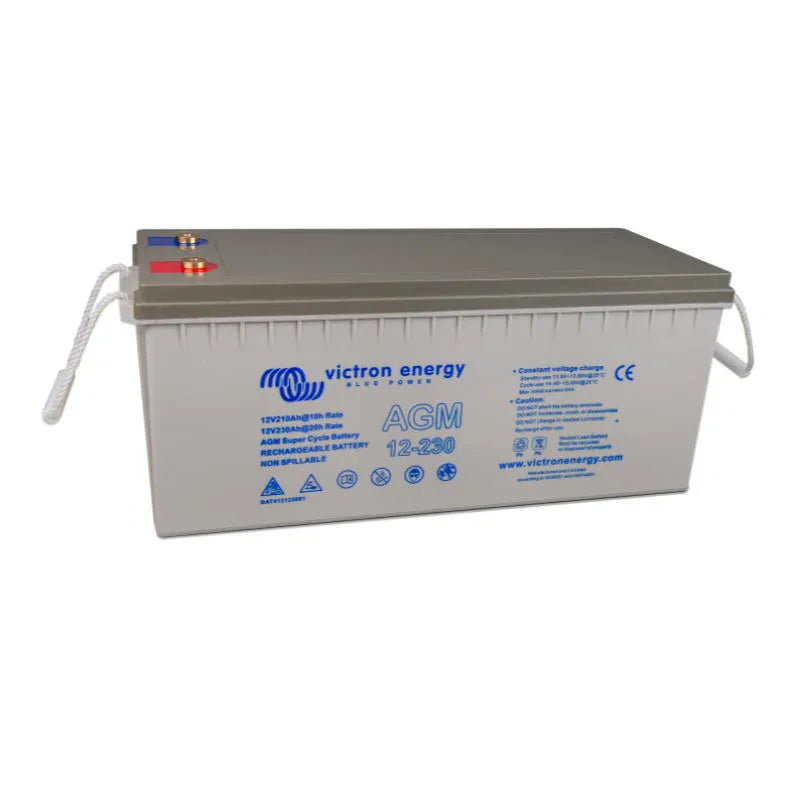

BAT412123081: 12V/230Ah AGM Super Cycle Battery (20.94 x 8.14 x 8.89 inches) 125.66 LBS
